New 2023 Coachmen RV Catalina Legacy 333RETS

Travel Trailer

Stock #10671

Vidor, TX

2023**** BLOWOUT!!

1 of 6

Sleeps 4
3 Slides
Rear Living Area

Rear Entertainment

37ft Long
8,628 lbs

See All Specs

Specifications

Sleeps	4	Slides	3
Length	36 ft 7 in	Ext Width	8 ft
Ext Height	11 ft 1 in	Int Height	6 ft 9 in
Hitch Weight	1096 lbs	GVWR	10500 lbs
Dry Weight	8628 lbs	Cargo Capacity	1872 lbs
Fresh Water Capacity	44 gals	Grey Water Capacity	40 gals
Black Water Capacity	30 gals	Furnace BTU	35000 btu
Available Beds	Queen	Refrigerator Type	12V
Refrigerator Size	10 cu ft	Cooktop Burners	3
Shower Size	34" x 34"	Number of Awnings	1
LP Tank Capacity	20 lbs	Water Heater Capacity	6 gal
Water Heater Type	Gas/Electric DSI	AC BTU	13500 btu
Awning Info	14' Electric w/Multicolor LED Strip & Remote	Axle Count	2
Washer/Dryer Available	Yes	Number of LP Tanks	2
Shower Type	Radius	Electrical Service	30 amp
VIN	5ZT2CAYB3PX027186

Description

Coachmen Catalina Legacy Edition travel trailer 333RETS highlights:

Bedroom Fireplace
Rear Entertainment Center
Dual Recliner Lounges
Exterior Storage
Flip-Down Cargo Rack

When you enjoy entertaining other RVers at your trailer, this Legacy Edition will do the trick! From the 14' electric awning with multicolor LED lights to the spacious main living and kitchen area thanks to the dual opposing slide outs. And the rear wall includes an entertainment center, two windows, plus countertop space for decor and other items. There are two recliner lounges and a sofa with a hide-a-bed sofa option to relax in, plus a booth dinette to play games and dine at. The kitchen peninsula offers a sink and more counter space to serve meals, plus there are full amenities including a 10 cu. ft. refrigerator. The dual entry bathroom is super convenient, and the spacious bedroom offers a slide out queen bed, a fireplace and two closets with one having been prepped for a washer/dryer option.

Each Catalina Legacy travel trailer by Coachmen is constructed with a cambered structural steel I-beam frame for added strength and support, plus an enclosed and fully sealed underbelly to extend your camping season. There is also a seamless Alpha room membrane, R-7 insulation throughout, full length frame E-coated outriggers, plus many more durable construction materials. You will love the 6' 9" interior height, along with Congoleum woodplank linoleum flooring, seamless Thermofoil countertops, and pleated night window shades. There is a Magnydyne 4G LTE connectivity with WiFi booster and extender to keep you connected to the outside world as you camp, and the JBL Aura MP3/FM stereo with Bluetooth and USB ports is sure to keep you entertained all weekend long. Choose a Catalina Legacy today!

Call Us Today

Features

Standard Features (2023)

Exterior

Flip Down Cargo Rack w/200 lb. Cap.
Electric Awning w/Multicolor LED Strip & Remote
Black Tank Flush
Battery Disconnect Switch
Siphon 360 Holding Tank Roof Vent
Electric Tongue Jack
Outside Utility Shower w/ Hands Free Holder
(2)20 lb. LP Tanks
Black ABS LP Bottle Cover
LP Quick Connect
Flush Mount Baggage Doors w/Radius Corners
Diamond Plate Rock Guard
Stabilizer Jacks
G20 Tinted Privacy Windows
Front Landscape Picture Window (263FKDS)
Premium JBL Exterior Speakers(s)
Friction Hinge Door
Radius Cornered Fiberglass Entry Door
Exterior 110V G.F.C.I Protected Receptacle
Exterior RG-6 Coax Cabling and Satellite Prep
Exterior TV Hookup
Rain Gutters with Drip Spouts
SolidStep Entrance Steps IPO Flip-Down Steps (Main Entrance Only)
XL Swing Arm Entry Assist Handle (Main Entrance Only)
Rear View Camera Prep
Full Size Exterior Camp Kitchen (323BHDSCK, 323QBTSCK, 343BHTS)
Exterior Camp Kitchen + Storage (263BHSCK, 293QBCK)
Exterior Camp Kitchen (263FKDS, 283RKS, 303RKDS)
Bottle Openers (Exterior Camp Kitchens)
Pets - "Leash Link" Quick Hookup D-Ring
Universal Solar Prep w/Roof & Chg. Controller Connections & Wiring

Safety

Smoke Alarm
LP/CO Gas Detector
Fire Extinguisher
Fire Escape Windows
Entrance Door Window
Dead-Bolt Lock on Entry Door

Interior

One Control Smart RV Tech Monitor Panel (uses LCI OneControl - App)
RV-LINK 4G LTE Remote Connect, WiFi, Booster, and Extender
Premium Audio JBL Aura Cube Multi-Zone Function Media Center
Premium JBL Interior Speaker(s)
10 Cu. Ft. 12V Refrigerator
Seamless Thermofoil Countertops Throughout
Under-mount Farm Style Sink
Residential Kitchen Faucet w/Pull Down Sprayer
Flush Counter Split Kitchen Sink Covers
3 Burner SST Range w/Flush Glass Top & LED Accent's
Slim Line Range Hood
SST Microwave W/Glass Turn Table
Congoleum Woodplank Linoleum Flooring
4000 Lumin LED Interior Lighting
Jiffy Sofa w/Flip Down Cup Holder/Arm Rest
Easy Access Kickboard Storage Underneath Jiffy Sofa (Per Floorplan)
Designer Wall Light Main Slide Room
Hard Valance Window Treatments
Pedestal Thermofoil Dinette Table
Under Bench Dinette Storage (Per Floorplan)
Easy Access Booth Dinette Storage Doors
12V 14" Living Room Power Vent Fan
12V 14" Bathroom Power Vent Fan
Marine Toilet with Foot Flush
ABS Tub/Shower Surround w/Shelves
Skylight Above Tub/Shower
Glass Step-In Shower w/ABS Surround (Per Floorplan)
Medicine Wall Cabinet with Mirror
Bedroom Surface Mounts USB Ports (Each Night Stand)
Kitchen USB's & Outlets
USB Surface Mounts Near Bunk Beds
Solid Master Bedroom Door(s) (Per Floorplan)
Solid Bunk Room Door (Per Floor Plan)
Full Length Night Stands (N/A Bed Slide-Outs)
Mirrored Wardrobes in Master Bedroom
Master Bedroom Overhead Cabinets
Underbed Storage w/Separation from Outside Front Storage
Designer Fitted Master Bed Sheet
Teddy Bear Bunk Mats
Full Lino in Slide-Outs and Bedrooms (Carpetless)
Washer/Dryer Prep (303RKDS, 313RLTS, 343BHTS)

Construction & Equipment

Cambered Structural Steel I-Beam Frame
New Road Defense Chassis Powder Coating
Full Length Frame Outriggers
5/8" Tongue & Groove Plywood Floor Decking
2"x3" Floor Joists on Approximately 12" Centers
5" Floor To Frame Steel Lag Bolts
Enclosed, Fully Sealed Corrugated Underbelly
Darco Subfloor Protective Wrap/Enclosure
Seamless Alpha Roof Membrane with Lifetime Warranty
Cross-Braced Engineered Roof Trusses w/5" Crown
3/8" Fully Decked Walk-On Roof
Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
Hardwood Cabinet Doors
5/8" Plywood Under Bed & Dinette Base
81" Interior Height (6' 9")
Easy-Trac Rack and Pinion Through Frame Main Slide-Out(s)
R-7 Fiberglass Insulation Throughout
6 Gal. Gas/Electric DSI Water Heater
Water Heater By-Pass Winterization Kit
12V Demand Water Pump
Premium Exterior Graphics Package
Upgraded Front Graphics Design
Platinum .024" Aluminum Exterior w/.030 Skirt Metal
Smooth HD Aluminum Radius Front
Polished HD Aluminum Fender Skirts
Spare Tire, Carrier, and Cover
Dexter EZ Lube Axles w/Leaf Spring Suspension
Self Adjusting Brakes
Roto-Cast Holding Tanks
Bumper w/ Drain Hose Carrier and End Caps
35,000 BTU Auto-Ignition Furnace w/Wall Thermostat (N/A 283RKS)
30,000 BTU Auto-Ignition Furnace w/Wall Thermostat (283RKS Only)
Residential In-Floor Ducted Heat
13,500 BTU Fully Ducted A/C
30 Amp Elect. Service w/ 100v 45-Amp Power Covt.
50 AMP Elect. Service (Standard on 303RKDS, 313RLTS, & 343BHTS) *see options
Upgraded Aluminum Wheels
Magnetic Hands Free Baggage Door Latches

Options

7 Cu. Ft. LP Gas/Electric RV Refrigerator w/Reversible Door Inserts
15,000 BTU Ducted A/C IPO 13.5 A/C
50 Amp Service w/ 2nd 13.5 A/C (N/A 243RBS, 263BHSCK, 283RKS)
50 Amp Service w/2nd A/C Prep (N/A 243RBS, 263BHSCK, 283RKS)
Peak Performance Solar Package - 30A Controller w/ 200W Panel
Free Standing Table w/4 Chairs (N/A U-Dinette Floorplans)
Tri-Fold Hide A Bed Sofa
Fireplace w/Electric Heater in the Living Room
Steel Fold-Down Steps ipo SolidStep Entrance Steps
2nd Queen Bed IPO Bunkroom & Camp Kitchen (343BHTS Only)
GE Washer/Dryer Combo Unit (Per Floorplan)
CSA Standards

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

We are here to help, call us at
409-769-4507 or Contact Us

We are here to help!

409-769-4507
Contact Us
Contact Sales

Golden Triangle Homes RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer-provided pictures, specifications and features may be used as needed. Inventory shown may be only a partial listing of the entire inventory. Please contact us at 409-769-4507 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2023 Coachmen RV Catalina Legacy 333RETS

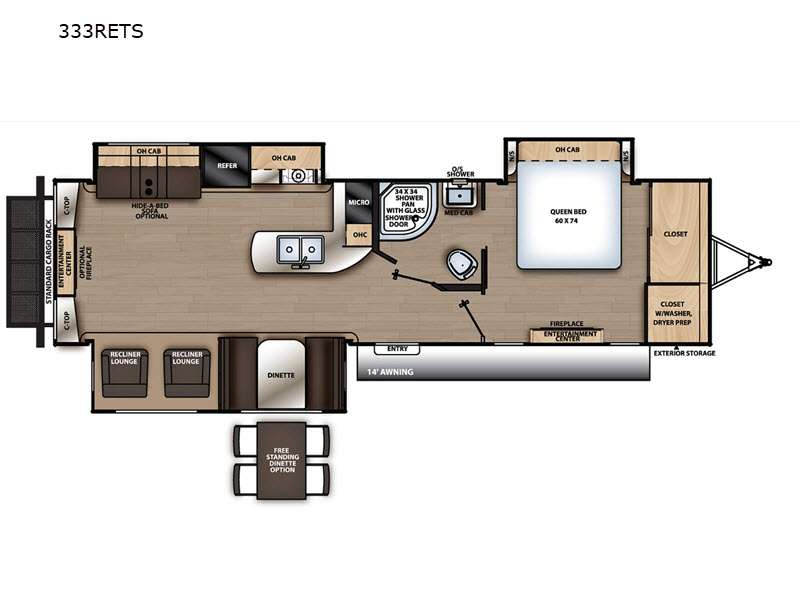

333RETS Floorplan
